Pi Visual Builder — design proposal & UI mockups for a Pi Network no-code builder

Status: design specification + static mockups — no implementation yet. This page and the mockups linked below are static HTML. There is no application, no backend and no build step. "Pi Visual Builder" is a voluntary proposal, submitted to the community PiRC repository as Issue #381 and PR #382 — both open. The official repository contains only PiRC1 and PiRC2, so "PiRC4" is not an assigned number.

Six proposed pillars (none implemented)

Design Tab

Drag-and-drop canvas with Elements Tree and responsive engine

Workflow Tab

Step-by-step visual logic flows with Pi payment actions

Data Tab

Relational database with PiDCTP-linked fields and privacy

Styles Tab

Color/font variables, element styles, AI dark theme

Plugins

Monetized marketplace for community components

AI Agent

Build apps from natural language chat instantly

Static UI mockups

Static HTML pages illustrating the intended interface. No backend, no build step.

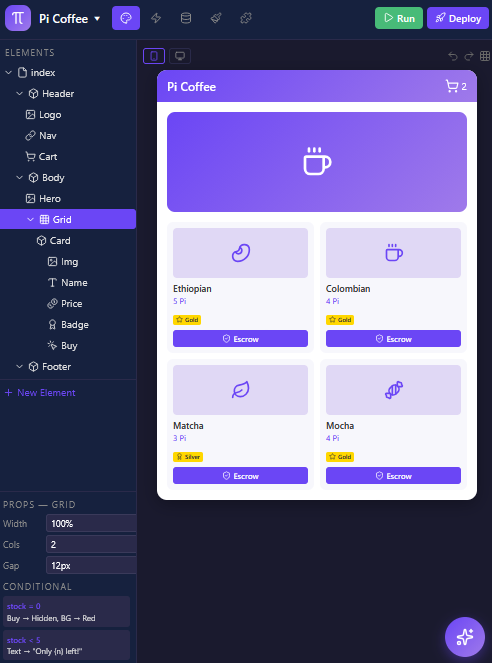

Design Tab

Visual canvas with elements tree and AI assistant

Workflow Tab

Step-by-step logic chains with Pi payment actions

Data Tab

Relational database with PiDCTP-linked fields

Styles Tab

Color/font variables, element styles, live preview

Documentation

Component Specification20+ visual components
Logic BlocksEvent, logic, data, Pi SDK blocks
Code GenerationReact/TS + HTML/CSS output
Component MarketplacePublishing, monetization
Example Apps5 complete app examples
Editor UI LayoutProfessional editor design
